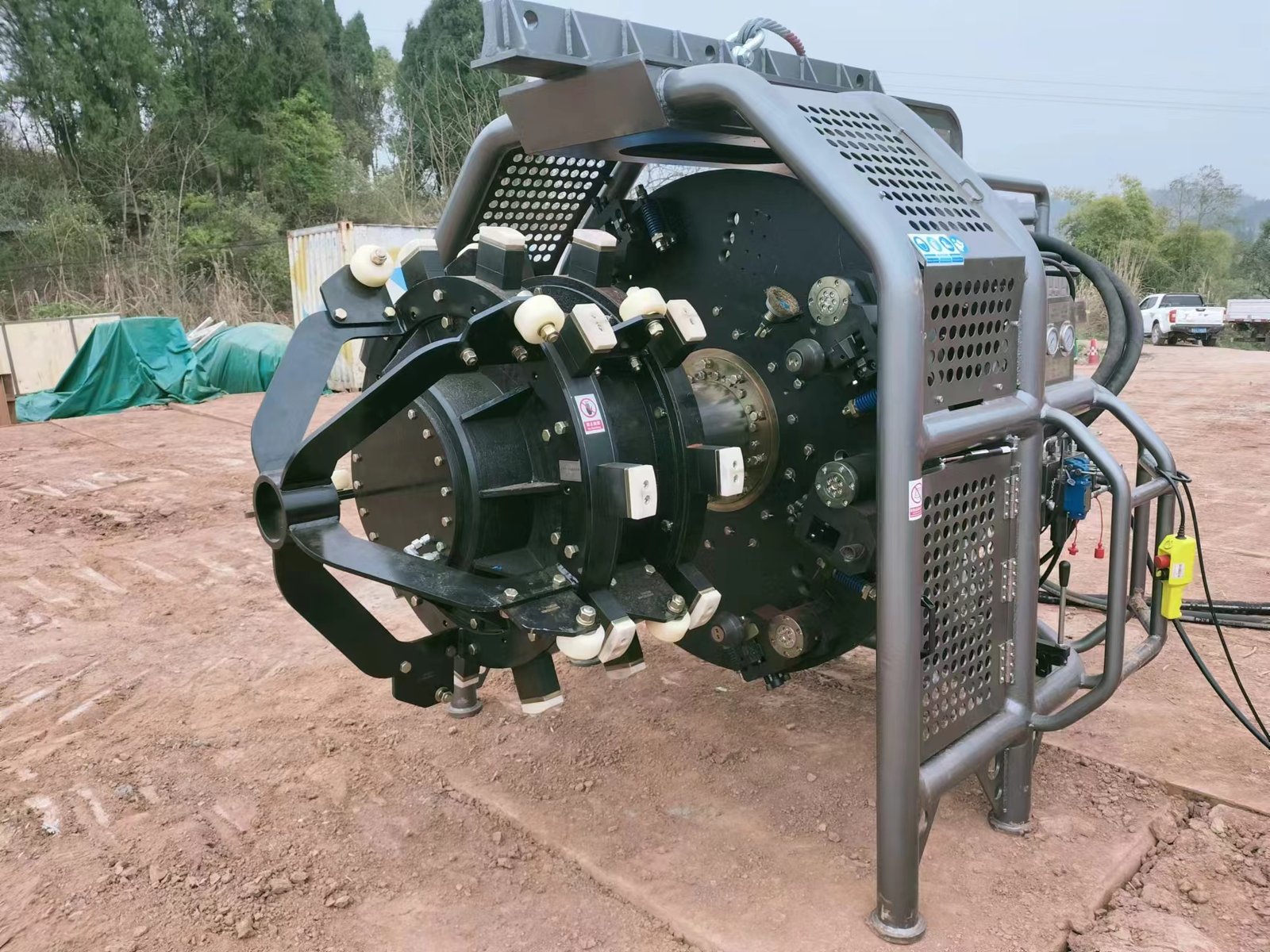

Short Clamping Section Pipe Facing Machines

Description

◆ Core Technologies

1. Uses quick positioning blocks for fast centering and positioning, followed by clamping.
2. Hydraulic clamping ensures cutting accuracy of ±0.1 mm; hydraulic drive provides strong power; rational structure and high reliability.
3. Through the internal tool holder and tool, internal chamfering and internal pipe-end machining can meet welding requirements for thick-walled pipes.
4. Optimized design of chamfering head, guide bush, pipe-end machining, and end-face chamfering; reasonable equipment structure; stable hydraulic system; easy operation and maintenance.
5. Uses an internal centering and clamping mechanism with accurate positioning, strong clamping force, and high safety and reliability.

◆ High Efficiency

High chamfering efficiency; each chamfering operation takes less than 3 minutes.

◆ Power System & Quality

1. Hydraulic drive with powerful force; internal oil circuit; high safety; large-diameter feed cylinder with precise and smooth feed.
2. Uses internationally renowned first-line brands; Parker hydraulic components; reliable performance.
3. Adjustable chamfering angle to meet the needs of different chamfer angles.
4. The machine base adopts a belt-type structure for easy movement and placement.

◆ Wide Adaptability & Versatility

1. Adjustable tool holders and supports adapt to different pipe diameters, wall thicknesses, and chamfer forms; easy adjustment when changing pipe diameters, wall thicknesses, or chamfer types.
2. The machine offers strong cutting power and good performance with different pipe materials; capable of meeting internal chamfering requirements for various pipe diameters and wall thicknesses.

Features:

• Multiple chamfering forms available: V-type, double V-type, U-type, etc.
• Internal chamfering function; maximum chamfer length up to 120 mm.
• Unique structural design, suitable for chamfering heat-exchanger tubes with diameters up to 500 mm.

Specifications:
