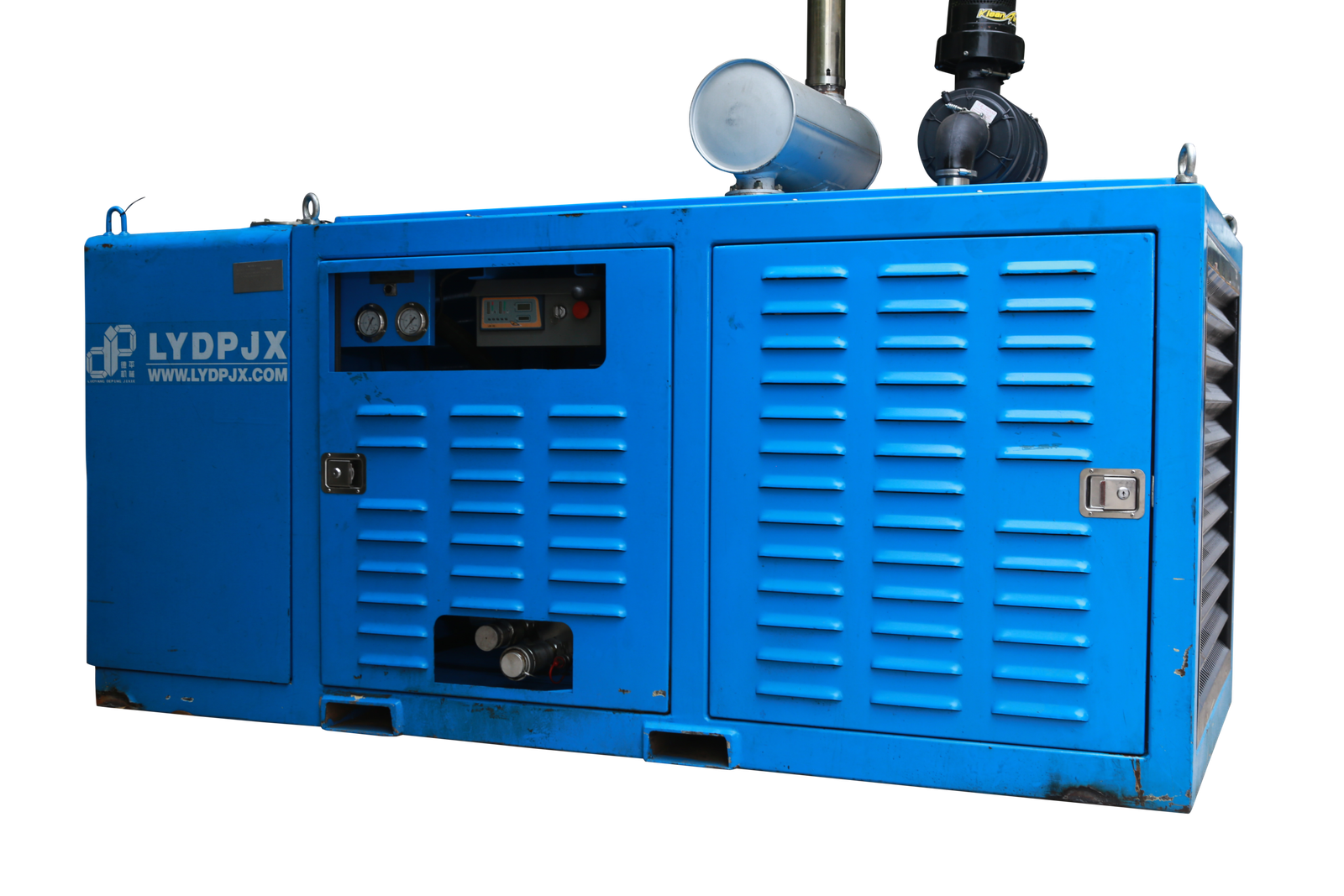

Diesel HPU

To adapt to the harsh working conditions onshore and offshore, we have designed and manufactured two models of HPUs for our PFMs. Each model of HPU can match all our 6’’-60 DPFM series pipe facing machines. They are also advantageous in many other aspects, such as compact structure, strong power, low heat productivity, wide range of hydraulic output, high universality.

Description

Specifications:

Model	DHPS-0680 Diesel Drive
Dimensions (mm)	270013001500
Weight (kg)	2100
PFM models supported	DPFM0612, DPFM1224,DPFM2436, DPFM2648, DPFM4860
Hydraulic Oil tank capacity (L)	500
Fuel tank capacity (L)	150
Motor	/
Diesel engine	125HP
Primary hydraulic pump	A3H180 (YUKEN)
Auxiliary hydraulic pump	AR22 (YUKEN)
Pressure regulating valve	REXROTH
Electric control system	Designed protection degree reaching IP65; all electric control components provided by world-renowned brands
Flexible connection	Remote control handle (including 20m-long cable),hydraulic connecting hose (20m)
Other configurations	Oil discharge cooling system; oil temperature, water temperature and rotation speed indicators
